HTML5 Canvas: Pixel Manipulation
Jakob Jenkov |
It is possible to get access to the individual pixels of an HTML5 canvas. You do so
using an ImageData object. The ImageData object contains
an array of pixels. By accessing this array you can manipulate the pixels. When
you are done with the pixel manipulation, you need to copy the pixels onto a canvas
to display them.
Creating an ImageData Object
Creating an ImageData object is done using the 2D Context function
createImageData(). Here is an example:
var canvas = document.getElementById("ex1");
var context = canvas.getContext("2d");
var width = 100;
var height = 100;
var imageData = context.createImageData(width, height);
The width and height properties of the createImageData()
function sets the width and height in pixels, of the pixel area represented by the ImageData
object created. The example above creates an ImageData object with a 100 by 100 pixel area.
ImageData Properties
The ImageData object has three properties:
- width
- height
- data
The width and height properties contain the width and height of
the graphical data area.
The data property is a byte array containing the pixel values.
Manipulating the Pixels
Each pixel in the data array
consists of 4 bytes values. One value for the red color, green color and blue color,
and a value for the alpha channel. The color of a pixel is determined by mixing
red, green and blue together to make up the final color. The alpha channel tells how
transparent the pixel is. Each of the red, green, blue and alph values can take values
between 0 and 255.
Here is a code example that sets the color and alpha values of the first pixel:
var pixelIndex = 0; imageData.data[pixelIndex ] = 255; // red color imageData.data[pixelIndex + 1] = 0; // green color imageData.data[pixelIndex + 2] = 0; // blue color imageData.data[pixelIndex + 3] = 255;
To read the values of a pixel, you write this code:
var pixelIndex = 0; var red = imageData.data[pixelIndex ]; // red color var green = imageData.data[pixelIndex + 1]; // green color var blue = imageData.data[pixelIndex + 2]; // blue color var alpha = imageData.data[pixelIndex + 3];
To access the values of subsequent pixels, increase the pixelIndex value
by 4 (each pixel is made up of 4 array elements, as shown above).
You calculate the index of a given pixel like this:
var index = 4 * (x + y * width);
The x and y in the calculation is the x and y coordinate of the
pixel to calculate the index of. Pixels in the data array are organized as
one long sequence of pixels, starting with the top left pixel and moving vertically towards
the right. When the end of the line is reached the pixel sequence continues from the leftmost
pixel on the line below. Therefore, to calculate the index of a pixel located at x, y you need
to multiply the y coordinate with the number of pixels per line, and add the x value to it.

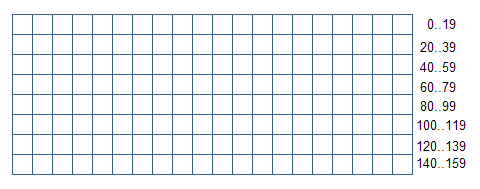

Here is a diagram illustrating a 20 pixel wide, and 8 pixel high ImageData pixel array. In the right margin the indices of the pixels of each row is listed. As you can see, the enumeration of the indices start from 0 at the upper left corner, and increases towards the right. When the edge of a line is reached, the enumeration continues from the leftmost pixel of the line below, and continues towards the right.
 |
| ImageData pixel grid - a 20 x 8 pixel grid. Pixels are indexed from the left upper corner towards the right, and line for line downwards. |
Copying Pixels Onto a Canvas
Once you have finished manipulating the pixels, you can copy them onto the canvas
use the 2D Context function putImageData(). There are two versions
of the putImageFunction(). The first version of the putImageData()
function copies all the pixels onto the canvas. Here is an example:
var canvasX = 25; var canvasY = 25; context.putImageData(imageData, canvasX, canvasY);
The canvasX and canvasY parameters are the x and y coordinate
of where on the canvas to insert the pixels.
The second version of the putImageData() function can copy a rectangle of
the pixels onto the canvas instead of all of the pixels. Here is a code example:
var canvasX = 25;
var canvasY = 25;
var sx = 0;
var sy = 0;
var sWidth = 25;
var sHeight = 25;
context.putImageData(imageData, canvasX, canvasY,
sx, sy, sWidth, sHeight);
The sx and sy parameters (sourceX and sourceY)
are the x and y coordinates
of the left upper corner of the rectangle to copy from the pixel array.
The sWidth and sHeight parameters (sourceWidth and
sourceHeight) are the width and
height of the rectangle to copy from the pixel array.
Grabbing Pixels From a Canvas
It is also possible to grab a rectangle of pixels from a canvas into an ImageData object.
This is done using the getImageData() function. Here is an example:
var x = 25; var y = 25; var width = 100; var height = 100; var imageData2 = context.getImageData(x, y, width, height);
The x and y parameters is the coordinates of the upper left
corner of the rectangle to grab from the canvas.
The width and height parameters are the width and height of
the rectangle to grab from the canvas.
