Java NIO Pipe

Jakob Jenkov
Last update: 2014-06-23

A Java NIO Pipe is a one-way data connection between two threads. A Pipe has a source channel and a sink channel. You write data to the sink channel. This data can then be read from the source channel.

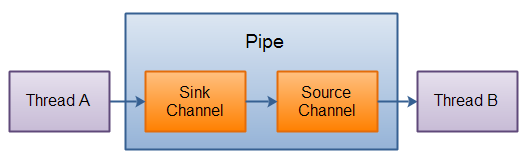

Here is an illustration of the Pipe principle:

Java NIO: Pipe Internals
Java NIO: Pipe Internals

Creating a Pipe

You open a Pipe by calling the method. Here is how that looks:

Pipe pipe =;

Writing to a Pipe

To write to a Pipe you need to access the sink channel. Here is how that is done:

Pipe.SinkChannel sinkChannel = pipe.sink();

You write to a SinkChannel by calling it's write() method, like this:

String newData = "New String to write to file..." + System.currentTimeMillis();

ByteBuffer buf = ByteBuffer.allocate(48);


while(buf.hasRemaining()) {

Reading from a Pipe

To read from a Pipe you need to access the source channel. Here is how that is done:

Pipe.SourceChannel sourceChannel = pipe.source();

To read from the source channel you call its read() method like this:

ByteBuffer buf = ByteBuffer.allocate(48);

int bytesRead =;

The int returned by the read() method tells how many bytes were read into the buffer.
